Request Pipeline¶
Overview¶
The request pipeline processes incoming PKI requests (EST, CMP) through a series of composable stages, each responsible for a specific aspect of request handling. The architecture uses the Composite Pattern throughout to allow flexible composition of validation, parsing, authentication, and authorization logic.
For a comprehensive overview of the credential architecture and component organization, see Credentials - Architecture.
Pipeline Stages:
HTTP Request Validation - Validates HTTP-level attributes (headers, content-type, payload size)
Message Parsing - Parses and validates protocol-specific message content
Authentication - Verifies the authenticity of credentials presented by the client
Authorization - Determines what operations are permitted for the authenticated request
Request Processing - Processes the request to issue certificates or perform other PKI operations
Response Generation - Generates a protocol-specific response
Each stage uses the Composite Pattern with a base component interface, allowing individual components to be composed into more complex operations.
Request Pipeline Flow¶

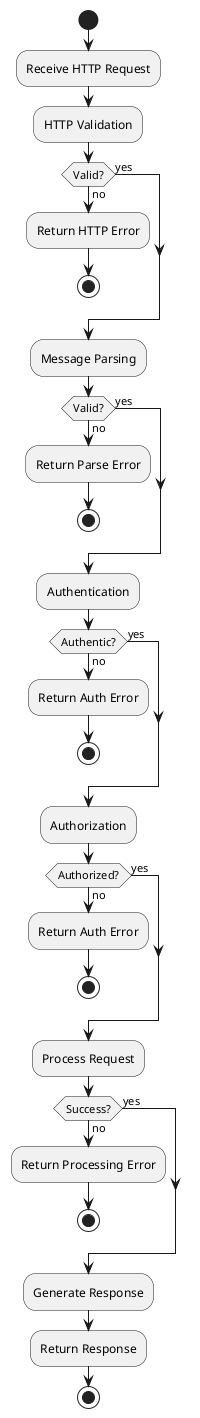

The following diagram shows how requests flow through the entire pipeline:
Request Context Hierarchy¶
The RequestContext hierarchy carries state through the entire pipeline:

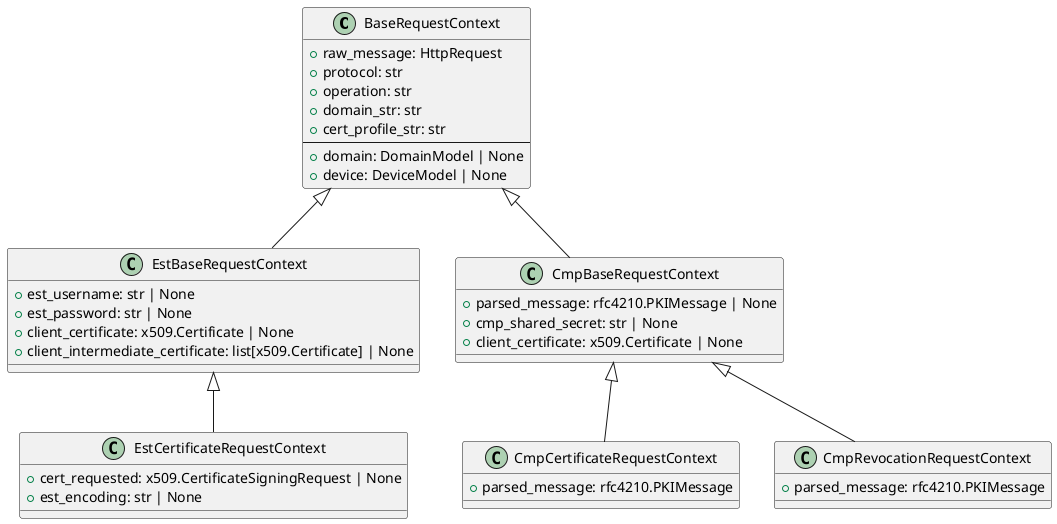

![@startuml
' Base context for all request types.
class BaseRequestContext {
+ raw_message: HttpRequest
+ protocol: str
+ operation: str
+ domain_str: str
+ cert_profile_str: str
--
+ domain: DomainModel | None
+ device: DeviceModel | None
}
' Validation request contexts.
class EstBaseRequestContext {
+ est_username: str | None
+ est_password: str | None
+ client_certificate: x509.Certificate | None
+ client_intermediate_certificate: list[x509.Certificate] | None
}
class CmpBaseRequestContext {
+ parsed_message: rfc4210.PKIMessage | None
+ cmp_shared_secret: str | None
+ client_certificate: x509.Certificate | None
}
' Certificate request contexts.
class EstCertificateRequestContext {
+ cert_requested: x509.CertificateSigningRequest | None
+ est_encoding: str | None
}
class CmpCertificateRequestContext {
+ parsed_message: rfc4210.PKIMessage
}
' Revocation request contexts.
class CmpRevocationRequestContext {
+ parsed_message: rfc4210.PKIMessage
}
' Relationships.
BaseRequestContext <|-- EstBaseRequestContext
BaseRequestContext <|-- CmpBaseRequestContext
EstBaseRequestContext <|-- EstCertificateRequestContext
CmpBaseRequestContext <|-- CmpCertificateRequestContext
CmpBaseRequestContext <|-- CmpRevocationRequestContext
@enduml](../_images/plantuml-8da0892d31e8825b126a9b71ff576be7bb24a5a2.png)
HTTP Request Validator Module Diagram¶

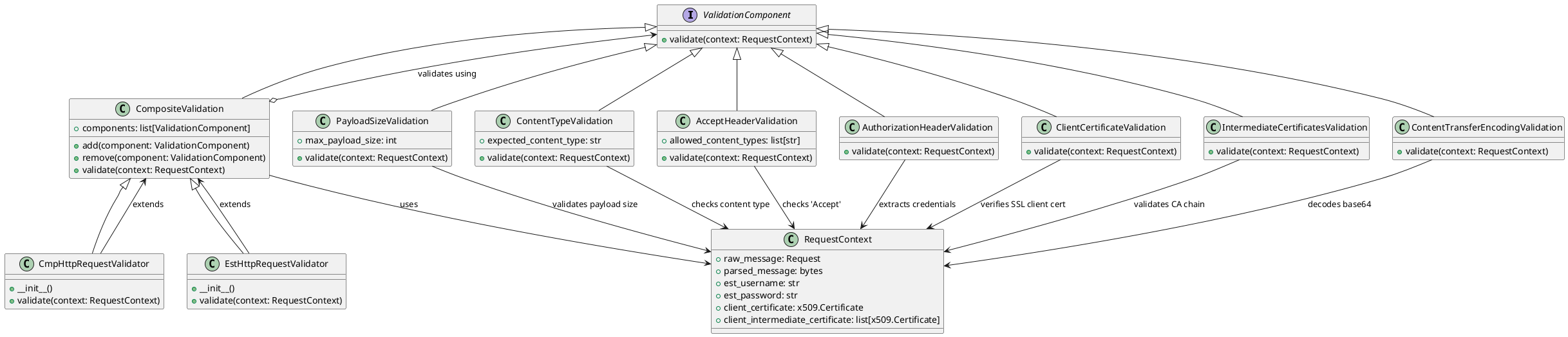

![@startuml
' General interface for all validation classes.
interface ValidationComponent {
+ validate(context: RequestContext)
}
' Composite class for grouping and executing multiple validation rules.
class CompositeValidation {
+ components: list[ValidationComponent]
+ add(component: ValidationComponent)
+ remove(component: ValidationComponent)
+ validate(context: RequestContext)
}
' Composite validators for CMP and EST-specific requests.
class CmpHttpRequestValidator {
+ __init__()
+ validate(context: RequestContext)
}
class EstHttpRequestValidator {
+ __init__()
+ validate(context: RequestContext)
}
' Individual validation components.
class PayloadSizeValidation {
+ max_payload_size: int
+ validate(context: RequestContext)
}
class ContentTypeValidation {
+ expected_content_type: str
+ validate(context: RequestContext)
}
class AcceptHeaderValidation {
+ allowed_content_types: list[str]
+ validate(context: RequestContext)
}
class AuthorizationHeaderValidation {
+ validate(context: RequestContext)
}
class ClientCertificateValidation {
+ validate(context: RequestContext)
}
class IntermediateCertificatesValidation {
+ validate(context: RequestContext)
}
class ContentTransferEncodingValidation {
+ validate(context: RequestContext)
}
' Dependency relationship with RequestContext.
class RequestContext {
+ raw_message: Request
+ parsed_message: bytes
+ est_username: str
+ est_password: str
+ client_certificate: x509.Certificate
+ client_intermediate_certificate: list[x509.Certificate]
}
' Relationships.
ValidationComponent <|-- CompositeValidation
CompositeValidation <|-- CmpHttpRequestValidator
CompositeValidation <|-- EstHttpRequestValidator
ValidationComponent <|-- PayloadSizeValidation
ValidationComponent <|-- ContentTypeValidation
ValidationComponent <|-- AcceptHeaderValidation
ValidationComponent <|-- AuthorizationHeaderValidation
ValidationComponent <|-- ClientCertificateValidation
ValidationComponent <|-- IntermediateCertificatesValidation
ValidationComponent <|-- ContentTransferEncodingValidation
' Composite relationships.
CompositeValidation o--> ValidationComponent : "validates using"
CompositeValidation --> RequestContext : "uses"
CmpHttpRequestValidator --> CompositeValidation : "extends"
EstHttpRequestValidator --> CompositeValidation : "extends"
PayloadSizeValidation --> RequestContext : "validates payload size"
ContentTypeValidation --> RequestContext : "checks content type"
AcceptHeaderValidation --> RequestContext : "checks 'Accept'"
AuthorizationHeaderValidation --> RequestContext : "extracts credentials"
ClientCertificateValidation --> RequestContext : "verifies SSL client cert"
IntermediateCertificatesValidation --> RequestContext : "validates CA chain"
ContentTransferEncodingValidation --> RequestContext : "decodes base64"
@enduml](../_images/plantuml-691676d49c19703fbd643087af43ef62d7f74e81.png)
Message Parser Module Diagram¶

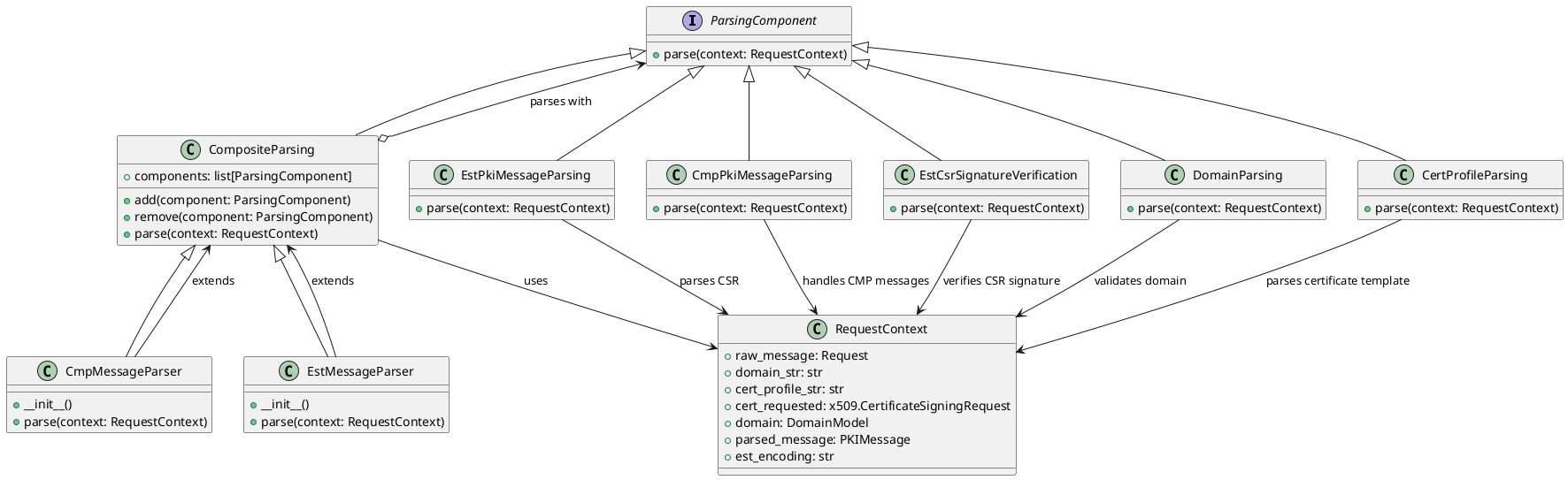

![@startuml
' General interface for all parsing components.
interface ParsingComponent {
+ parse(context: RequestContext)
}
' Composite parser to group and execute individual parsing strategies.
class CompositeParsing {
+ components: list[ParsingComponent]
+ add(component: ParsingComponent)
+ remove(component: ParsingComponent)
+ parse(context: RequestContext)
}
' Specialized composite parsers for specific protocols.
class CmpMessageParser {
+ __init__()
+ parse(context: RequestContext)
}
class EstMessageParser {
+ __init__()
+ parse(context: RequestContext)
}
' Individual parsing components.
class EstPkiMessageParsing {
+ parse(context: RequestContext)
}
class CmpPkiMessageParsing {
+ parse(context: RequestContext)
}
class EstCsrSignatureVerification {
+ parse(context: RequestContext)
}
class DomainParsing {
+ parse(context: RequestContext)
}
class CertProfileParsing {
+ parse(context: RequestContext)
}
' Dependency relationship with RequestContext.
class RequestContext {
+ raw_message: Request
+ domain_str: str
+ cert_profile_str: str
+ cert_requested: x509.CertificateSigningRequest
+ domain: DomainModel
+ parsed_message: PKIMessage
+ est_encoding: str
}
' Relationships.
ParsingComponent <|-- CompositeParsing
CompositeParsing <|-- CmpMessageParser
CompositeParsing <|-- EstMessageParser
ParsingComponent <|-- EstPkiMessageParsing
ParsingComponent <|-- CmpPkiMessageParsing
ParsingComponent <|-- EstCsrSignatureVerification
ParsingComponent <|-- DomainParsing
ParsingComponent <|-- CertProfileParsing
' Composite dependencies.
CompositeParsing o--> ParsingComponent : "parses with"
CompositeParsing --> RequestContext : "uses"
CmpMessageParser --> CompositeParsing : "extends"
EstMessageParser --> CompositeParsing : "extends"
EstPkiMessageParsing --> RequestContext : "parses CSR"
CmpPkiMessageParsing --> RequestContext : "handles CMP messages"
EstCsrSignatureVerification --> RequestContext : "verifies CSR signature"
DomainParsing --> RequestContext : "validates domain"
CertProfileParsing --> RequestContext : "parses certificate template"
@enduml](../_images/plantuml-3dfff5322fcd8b365b7d0a021e2f2926f787aac6.png)
Authentication Module Diagram¶

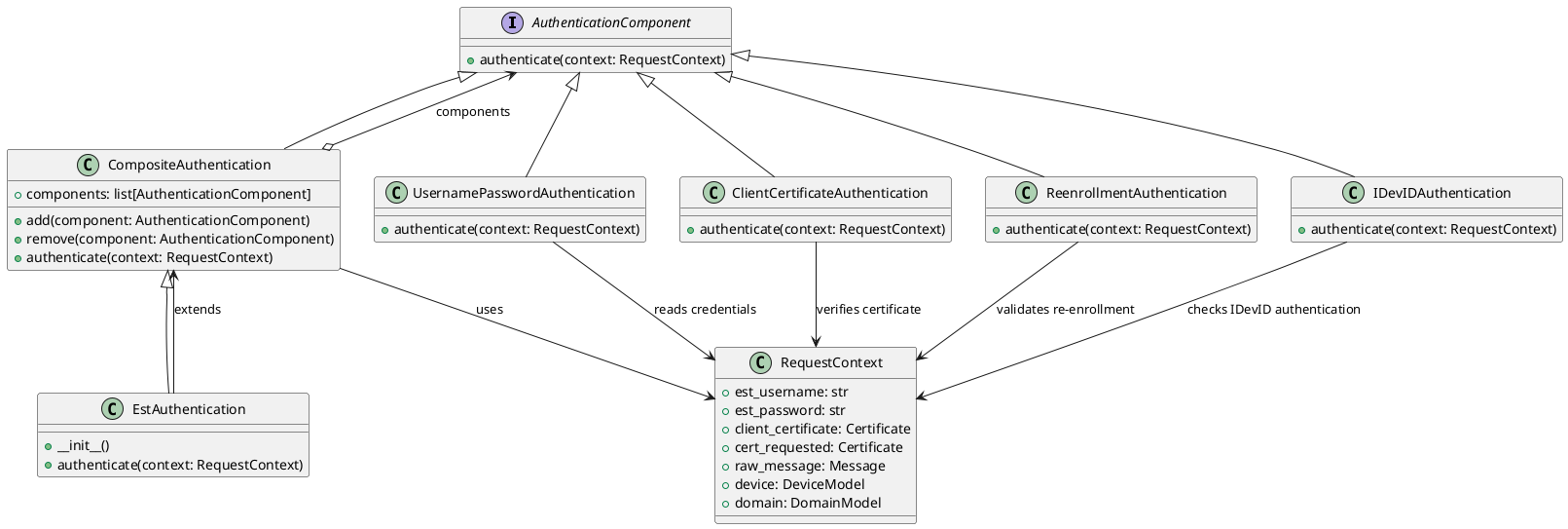

![@startuml
' General interface for all authentication classes.
interface AuthenticationComponent {
+ authenticate(context: RequestContext)
}
' Defines the structure for aggregating multiple authentications.
class CompositeAuthentication {
+ components: list[AuthenticationComponent]
+ add(component: AuthenticationComponent)
+ remove(component: AuthenticationComponent)
+ authenticate(context: RequestContext)
}
' Composite for EST-specific authentication methods.
class EstAuthentication {
+ __init__()
+ authenticate(context: RequestContext)
}
' Individual concrete authentication implementations for specialized use cases.
class UsernamePasswordAuthentication {
+ authenticate(context: RequestContext)
}
class ClientCertificateAuthentication {
+ authenticate(context: RequestContext)
}
class ReenrollmentAuthentication {
+ authenticate(context: RequestContext)
}
class IDevIDAuthentication {
+ authenticate(context: RequestContext)
}
' Dependency relationship with request context.
class RequestContext {
+ est_username: str
+ est_password: str
+ client_certificate: Certificate
+ cert_requested: Certificate
+ raw_message: Message
+ device: DeviceModel
+ domain: DomainModel
}
' Relationship between AuthenticationComponent and implementations.
AuthenticationComponent <|-- UsernamePasswordAuthentication
AuthenticationComponent <|-- ClientCertificateAuthentication
AuthenticationComponent <|-- ReenrollmentAuthentication
AuthenticationComponent <|-- IDevIDAuthentication
AuthenticationComponent <|-- CompositeAuthentication
CompositeAuthentication <|-- EstAuthentication
' Internal dependencies
CompositeAuthentication o--> AuthenticationComponent : components
CompositeAuthentication --> RequestContext : uses
EstAuthentication --> CompositeAuthentication : extends
UsernamePasswordAuthentication --> RequestContext : reads credentials
ClientCertificateAuthentication --> RequestContext : verifies certificate
ReenrollmentAuthentication --> RequestContext : validates re-enrollment
IDevIDAuthentication --> RequestContext : checks IDevID authentication
@enduml](../_images/plantuml-15a51c89814c24000145d0ab150741353070e8f8.png)
Authorization Module Diagram¶

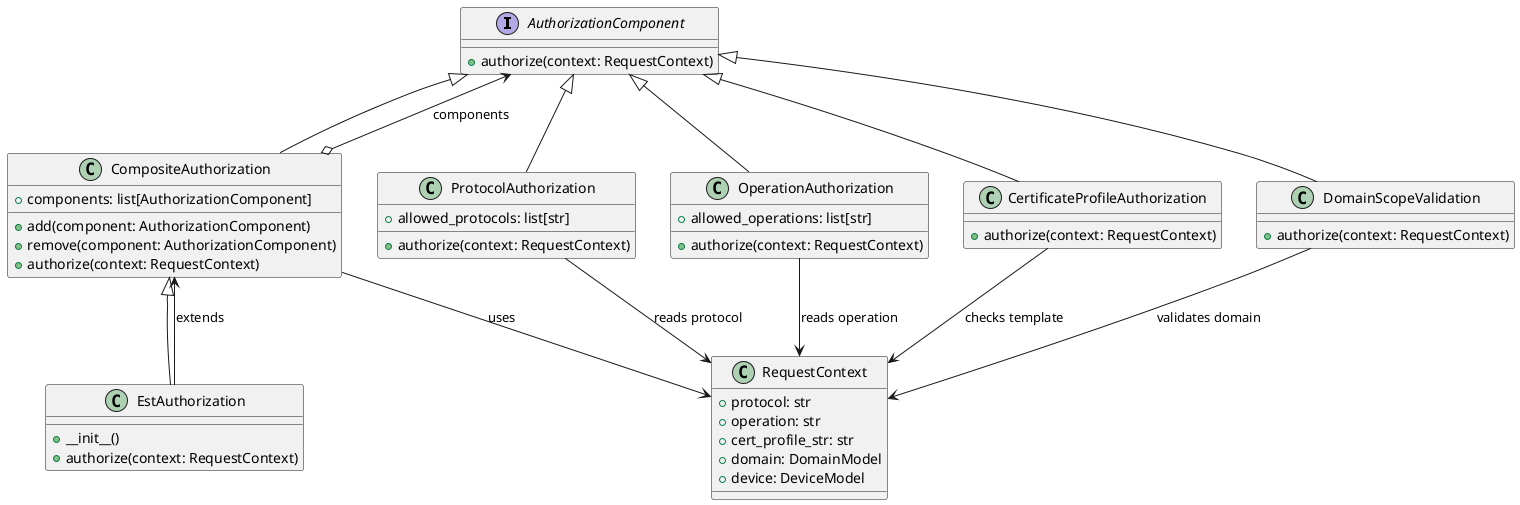

![@startuml
' General interface for all authorization logic.
interface AuthorizationComponent {
+ authorize(context: RequestContext)
}
' Composite that combines multiple authorization mechanisms.
class CompositeAuthorization {
+ components: list[AuthorizationComponent]
+ add(component: AuthorizationComponent)
+ remove(component: AuthorizationComponent)
+ authorize(context: RequestContext)
}
' Specific composite for EST authorization rules.
class EstAuthorization {
+ __init__()
+ authorize(context: RequestContext)
}
' Concrete authorization rules for different aspects of a request.
class ProtocolAuthorization {
+ allowed_protocols: list[str]
+ authorize(context: RequestContext)
}
class OperationAuthorization {
+ allowed_operations: list[str]
+ authorize(context: RequestContext)
}
class CertificateProfileAuthorization {
+ authorize(context: RequestContext)
}
class DomainScopeValidation {
+ authorize(context: RequestContext)
}
' Dependency: Context object used in all authorization methods.
class RequestContext {
+ protocol: str
+ operation: str
+ cert_profile_str: str
+ domain: DomainModel
+ device: DeviceModel
}
' Relationships between components.
AuthorizationComponent <|-- ProtocolAuthorization
AuthorizationComponent <|-- OperationAuthorization
AuthorizationComponent <|-- CertificateProfileAuthorization
AuthorizationComponent <|-- DomainScopeValidation
AuthorizationComponent <|-- CompositeAuthorization
CompositeAuthorization <|-- EstAuthorization
' Aggregations and dependencies.
CompositeAuthorization o--> AuthorizationComponent : components
CompositeAuthorization --> RequestContext : uses
EstAuthorization --> CompositeAuthorization : extends
ProtocolAuthorization --> RequestContext : reads protocol
OperationAuthorization --> RequestContext : reads operation
CertificateProfileAuthorization --> RequestContext : checks template
DomainScopeValidation --> RequestContext : validates domain
@enduml](../_images/plantuml-b21f4a9edfc0682d77006b397def48d138a61a34.png)
Key Concepts¶
- Composite Pattern
Each pipeline stage (validation, parsing, authentication, authorization) uses the Composite Pattern with a base component interface. This allows individual components to be composed into more complex operations, enabling flexible configuration of what rules apply to each protocol and operation.
- Request Context
The RequestContext object carries state through the entire pipeline. Different context types (EstCertificateRequestContext, CmpBaseRequestContext, etc.) extend BaseRequestContext to provide protocol-specific attributes while maintaining a consistent interface.
- ParsingComponent
Parsing components sequentially process the request context, extracting and validating message content. Examples include:
EstAuthorizationHeaderParsing: Extracts HTTP Basic Auth credentials
EstPkiMessageParsing: Parses PKCS#10 CSR
CmpPkiMessageParsing: Parses CMP PKIMessage
DomainParsing: Resolves domain identifier to DomainModel
CertProfileParsing: Resolves certificate profile
- AuthenticationComponent
Authentication components verify the authenticity of credentials. Unlike authorization, authentication does NOT determine device identity; that happens during authorization. Authentication simply validates that the provided credentials are valid.
- AuthorizationComponent
Authorization components determine what operations are allowed. They access the fully populated RequestContext (including domain and device information) to make authorization decisions.
- Error Handling
Each stage can raise exceptions with appropriate error messages. Errors are caught at the view level and converted to protocol-specific error responses (EST error messages or CMP PKIFailureInfo).
