Database Encryption in Trustpoint

Overview

Trustpoint uses the application-secret subsystem to protect sensitive database fields such as EST passwords, CMP shared secrets, TLS private keys, and operator-enabled protected imported keys. Field encryption uses AES-256-GCM. The Data Encryption Key (DEK) can be protected either by Trustpoint’s software app-secret backend or by a PKCS#11-backed Key Encryption Key (KEK).

Key Management Architecture

The encryption system follows this key structure:

  1. Data Encryption Key (DEK) - A 256-bit key used for field encryption

  2. Key Encryption Key (KEK) - Optional PKCS#11 AES key used to protect the DEK

  3. Field Encryption - Individual database fields encrypted using the DEK with AES-256-GCM

Key Generation Process

DEK Protection Modes

Trustpoint supports two application-secret backend modes:

Software app-secret backend

The DEK is stored by Trustpoint’s software app-secret configuration. This mode is useful for development, demo, and PKCS#11 tokens that only support signing/key-generation operations.

PKCS#11 app-secret backend

Trustpoint generates or locates a non-extractable AES KEK on the PKCS#11 token and stores only the protected DEK in the database. The token must support the standard AES flows that Trustpoint probes during setup.

PKCS#11 KEK Handling

When PKCS#11 application-secret protection is enabled:

  1. Trustpoint opens a session with the configured PKCS#11 token

  2. The application-secret KEK is created or resolved on that token

  3. The KEK is marked non-extractable where the provider supports those attributes

  4. Trustpoint protects the DEK using supported AES key-wrap or AES encryption/decryption mechanisms

  5. The protected DEK is stored in the application-secret PKCS#11 config row

Runtime Key Management

Container Startup

When the Trustpoint container starts:

  1. The system attempts to retrieve the cached DEK from Django’s cache

  2. If not cached, it resolves the configured app-secret backend:

    • software backend: load the configured software DEK

    • PKCS#11 backend: recover the DEK through the token-backed KEK

  3. The decrypted DEK is cached in-process for field encryption/decryption

The DEK remains in memory cache for the process lifetime.

DEK Caching Strategy

  • Cache Key: application-secret backend specific

  • Cache Duration: Indefinite (None timeout)

  • Cache Backend: Django’s configured cache

  • Security: DEK can be manually cleared using the app-secret cache clearing helper

Database Field Encryption

Encrypted Field Types

Two field types are provided for database encryption:

  • EncryptedCharField - For short sensitive strings (passwords, secrets)

  • EncryptedTextField - For longer sensitive text content

Encryption Process

When saving data to encrypted fields:

  1. Retrieve DEK: Get the cached DEK from the configured app-secret backend

  2. Generate Nonce: Create a random 12-byte nonce for GCM mode

  3. Encryption: Encrypt using AES-256-GCM with the DEK and nonce

  4. Encoding: Store the encoded ciphertext with the Trustpoint ciphertext prefix

Decryption Process

When reading data from encrypted fields:

  1. Retrieve DEK: Get the cached DEK from the configured app-secret backend

  2. Decode: Base64 decode the stored value

  3. Extract Components: Separate nonce (first 12 bytes), authentication tag (next 16 bytes), and ciphertext

  4. Decryption: Decrypt using AES-256-GCM and verify authentication tag

  5. Return: Return the original plaintext

Protected Data Types

The following sensitive fields use database encryption:

Device Model Fields

  • est_password (EncryptedCharField, max_length=128) - EST authentication passwords

  • cmp_shared_secret (EncryptedCharField, max_length=128) - CMP protocol shared secrets

Credential Model Fields

  • private_key (EncryptedCharField, max_length=65536) - PEM-encoded private keys for credentials created in Trustpoint

Crypto Managed-Key Fields

  • encrypted_private_key_pkcs8_der_b64 - PKCS#8 DER material for protected imported keys, encrypted before it is stored

Protected imported keys are only available when Allow imported private keys is enabled under Management > Settings > Security and the instance uses both a PKCS#11 crypto backend and PKCS#11-backed application-secret protection. They are not imported into the HSM token.

UML Sequence Diagram

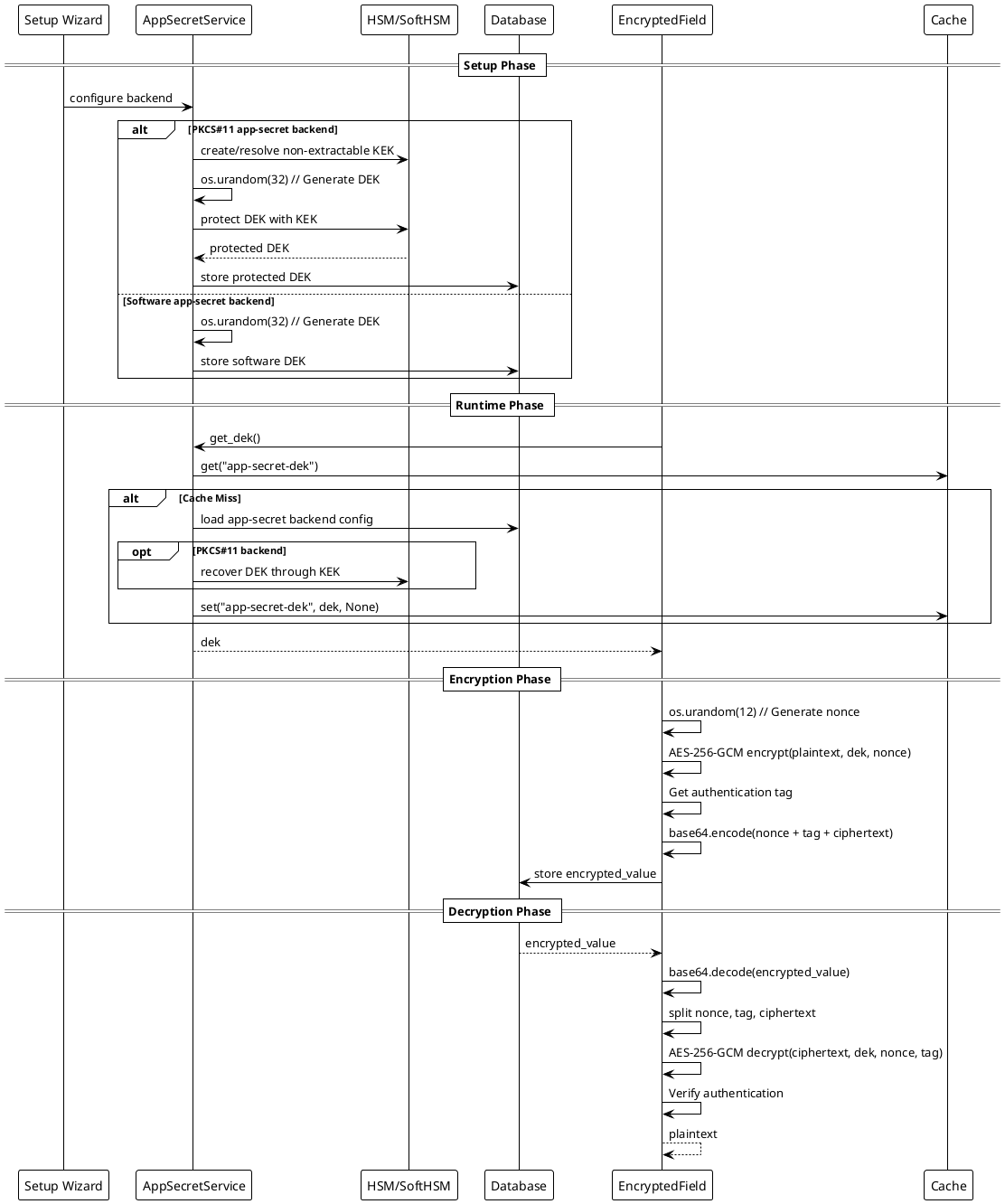

@startuml !theme plain participant "Setup Wizard" as Setup participant "AppSecretService" as Secret participant "HSM/SoftHSM" as HSM participant "Database" as DB participant "EncryptedField" as Field participant "Cache" as Cache == Setup Phase == Setup -> Secret: configure backend alt PKCS#11 app-secret backend Secret -> HSM: create/resolve non-extractable KEK Secret -> Secret: os.urandom(32) // Generate DEK Secret -> HSM: protect DEK with KEK HSM --> Secret: protected DEK Secret -> DB: store protected DEK else Software app-secret backend Secret -> Secret: os.urandom(32) // Generate DEK Secret -> DB: store software DEK end == Runtime Phase == Field -> Secret: get_dek() Secret -> Cache: get("app-secret-dek") alt Cache Miss Secret -> DB: load app-secret backend config opt PKCS#11 backend Secret -> HSM: recover DEK through KEK end Secret -> Cache: set("app-secret-dek", dek, None) end Secret --> Field: dek == Encryption Phase == Field -> Field: os.urandom(12) // Generate nonce Field -> Field: AES-256-GCM encrypt(plaintext, dek, nonce) Field -> Field: Get authentication tag Field -> Field: base64.encode(nonce + tag + ciphertext) Field -> DB: store encrypted_value == Decryption Phase == DB --> Field: encrypted_value Field -> Field: base64.decode(encrypted_value) Field -> Field: split nonce, tag, ciphertext Field -> Field: AES-256-GCM decrypt(ciphertext, dek, nonce, tag) Field -> Field: Verify authentication Field --> Field: plaintext @enduml

Encryption Implementation Details

Cryptographic Algorithm

The system uses AES-256-GCM (Advanced Encryption Standard with 256-bit keys in Galois/Counter Mode) for field-level encryption:

  • Algorithm: AES-256

  • Mode: GCM (Galois/Counter Mode)

  • Key Size: 256 bits (32 bytes)

  • Nonce Size: 96 bits (12 bytes)

  • Authentication Tag: 128 bits (16 bytes)

  • Padding: Not required (GCM is a stream cipher mode)

Security Properties

Nonce

  • 12-byte random nonce generated for each encryption operation using os.urandom(12)

  • Ensures identical plaintexts produce different ciphertexts

Authentication

  • Built-in authentication prevents tampering

  • 128-bit authentication tag provides strong integrity protection

  • Eliminates padding oracle attacks

Key Management

  • 256-bit DEK provides strong cryptographic security

  • Optional PKCS#11 KEK protects the DEK when HSM-backed application-secret protection is enabled

  • Software app-secret protection is available for development, demo, and signing-only PKCS#11 tokens

Field Encryption/Decryption Workflow

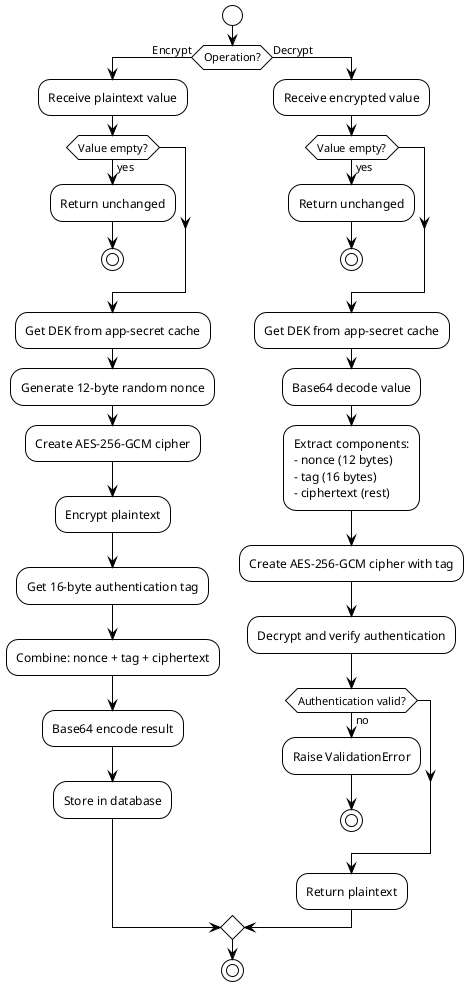

@startuml !theme plain start if (Operation?) then (Encrypt) :Receive plaintext value; if (Value empty?) then (yes) :Return unchanged; stop endif :Get DEK from app-secret cache; :Generate 12-byte random nonce; :Create AES-256-GCM cipher; :Encrypt plaintext; :Get 16-byte authentication tag; :Combine: nonce + tag + ciphertext; :Base64 encode result; :Store in database; else (Decrypt) :Receive encrypted value; if (Value empty?) then (yes) :Return unchanged; stop endif :Get DEK from app-secret cache; :Base64 decode value; :Extract components: - nonce (12 bytes) - tag (16 bytes) - ciphertext (rest); :Create AES-256-GCM cipher with tag; :Decrypt and verify authentication; if (Authentication valid?) then (no) :Raise ValidationError; stop endif :Return plaintext; endif stop @enduml

Error Handling and Recovery

HSM Unavailable

If the PKCS#11 token becomes unavailable:

  • Encrypted fields will raise ValidationError during read/write operations

  • The system logs detailed error messages for debugging

  • Manual intervention required to restore HSM connectivity

Note: The DEK remains cached in memory, so existing processes can continue using encrypted fields until the application restarts.

Corrupted DEK

If the protected DEK becomes corrupted:

  • The system detects invalid protected data during DEK recovery

  • Error messages indicate potential data corruption

  • Manual recovery or reconfiguration of the app-secret backend will be required

  • Warning: Regenerating the DEK will make all previously encrypted data unrecoverable

Key Rotation

Currently, key rotation is not implemented. Future versions may include:

  • Automated KEK rotation with dual-key support

  • DEK re-wrapping with new KEKs

  • Gradual field re-encryption with new DEKs
