HSM Integration in Trustpoint

Overview

Trustpoint integrates with Hardware Security Modules (HSMs) through the PKCS#11 standard to provide secure key storage and cryptographic operations.

Supported HSM Types

SoftHSM

Primary Support: SoftHSM2 is the default.

  • Library Path: /usr/lib/libsofthsm2.so in the Trustpoint container, which points to the packaged SoftHSM module.

  • Use Case: Development and CI validation. Use a production-grade HSM for production deployments.

The local tp_wizard.sh SoftHSM setup mounts the SoftHSM token directory into the Trustpoint container and uses the SoftHSM PKCS#11 module directly. This is intentional: the direct module exposes the AES key-wrap and AES-CBC mechanisms required for HSM-backed application-secret protection.

Physical HSM

Standards-Based Support: Physical HSM devices are supported through their PKCS#11 module when they expose the mechanisms Trustpoint requires.

  • Status: Provider-specific configuration files are treated as opaque input and passed to the uploaded module through an operator-provided environment variable.

  • Use Case: High-security production deployments

Supported Cryptographic Operations

RSA Key Operations

Key Generation: - RSA key pair generation within HSM - Supported key sizes: 2048, 3072, 4096 bits - Keys marked as non-extractable for security

Signing Operations: - PKCS#1 v1.5 padding support - Supported hash algorithms: SHA-256, SHA-384, SHA-512, SHA-224 - Pre-hashed data signing capability

Public Key Handling: - Public key extraction for certificate generation and key verification

EC (Elliptic Curve) Key Operations

Key Generation: - EC key pair generation within HSM - Supported curves: P-256, P-384, P-521 - Curve parameter validation

Signing Operations: - ECDSA signature generation - Supported hash algorithms: SHA-256, SHA-384, SHA-512 - Data is hashed before signing (pre-hashed data not supported) - ASN.1 DER encoded signatures - Mechanism mapping: ECDSA_SHA256, ECDSA_SHA384, ECDSA_SHA512

Key Management: - Named curve support via OID mapping - Public key point extraction - Keys marked as non-extractable (EXTRACTABLE=False) - EC is used for signing, not encryption/decryption

AES Key Operations

Symmetric Key Generation: - AES key generation in HSM - Supported key lengths: 128, 192, 256 bits - Primary use for KEK storage

Application Secret Protection: - HSM-backed application-secret protection is the default for PKCS#11 fresh installs. - Trustpoint stores database secrets encrypted with an application-secret DEK. - When PKCS#11 app-secret protection is enabled, that DEK is protected by a non-exportable AES KEK on the token.

Encryption/Decryption Operations: - DEK protection with standard PKCS#11 AES key wrap/unwrap mechanisms when available - Fallback DEK protection with AES-CBC-PAD or AES-CBC C_Encrypt/C_Decrypt

General HSM Operations

Token Management: - Token initialization and configuration - Slot enumeration and selection - Token authentication with PIN

Session Management: - Session creation and termination - User authentication - Session state management

Object Management: - Key object creation and destruction - Object attribute management - Label-based key retrieval

Random Number Generation: - Uses OS-level randomness (os.urandom()) for DEK generation - SoftHSM provides cryptographically secure random generation - Used for nonce/IV generation in encryption operations

Digest Operations: - Hardware-accelerated hashing via HSM - Supported algorithms: SHA-224, SHA-256, SHA-384, SHA-512 - Mechanism mapping: SHA224, SHA256, SHA384, SHA512

Architecture

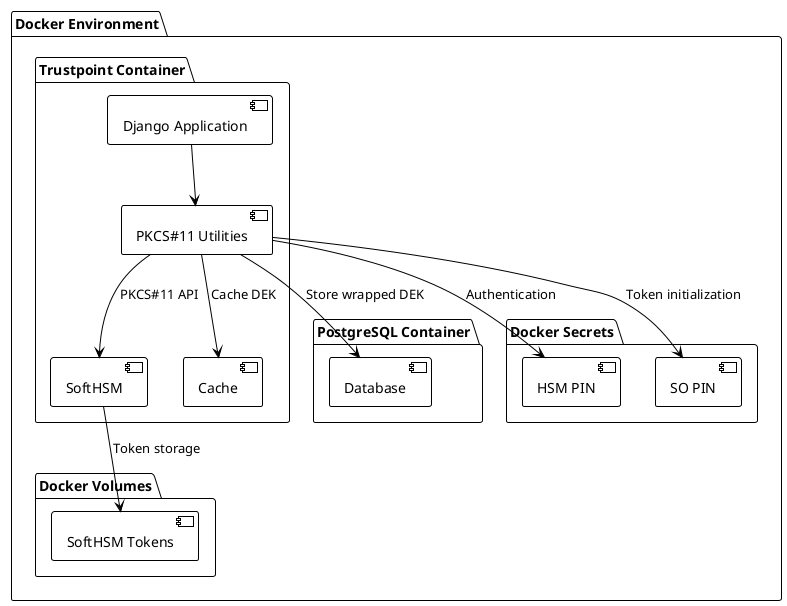

@startuml !theme plain package "Docker Environment" { package "Trustpoint Container" { [Django Application] as App [PKCS#11 Utilities] as Utils [SoftHSM] as HSM [Cache] as Cache } package "PostgreSQL Container" { [Database] as DB } package "Docker Secrets" { [HSM PIN] as PIN [SO PIN] as SOPIN } package "Docker Volumes" { [SoftHSM Tokens] as Tokens } } App --> Utils Utils --> HSM : PKCS#11 API Utils --> DB : Store wrapped DEK Utils --> Cache : Cache DEK Utils --> PIN : Authentication Utils --> SOPIN : Token initialization HSM --> Tokens : Token storage @enduml

Key Components

Trustpoint Container: - Django application with HSM integration - SoftHSM with token storage - DEK caching for database encryption

Docker Infrastructure: - Secure PIN management via Docker secrets - Persistent token storage via Docker volumes - Separate database container with encrypted fields

Key Management: - KEK stored in HSM, marked as non-extractable (SENSITIVE=True, EXTRACTABLE=False) - DEK protected by the KEK using PKCS#11 AES key wrap or AES encryption and cached in-process - Database fields encrypted with AES-256-GCM

Fresh-install wizard behavior

Selecting the PKCS#11 crypto backend in the setup wizard configures managed signing keys on the PKCS#11 token. By default, Trustpoint also requires the token to protect the application-secret DEK. Setup is refused when the token can authenticate and generate signing keys but cannot protect and recover the DEK with supported PKCS#11 AES flows.

Operators can disable this policy in the wizard when the token should only manage signing keys. In that mode, application secrets use Trustpoint’s software app-secret backend for compatibility with signing-only tokens.

When PKCS#11 application-secret protection is enabled, the DEK is recovered through the HSM-backed KEK at startup and then cached in-process. Per-field encryption still uses local AES-256-GCM.

Protected imported keys

Trustpoint normally generates signing authority keys through the configured crypto backend. Existing private-key credentials can be imported only when the operator explicitly enables Allow imported private keys under Management > Settings > Security.

Protected imported keys require both the PKCS#11 crypto backend and PKCS#11 application-secret protection. The imported private key is encrypted with the application-secret DEK and stored in the Trustpoint database as a managed-key binding. It is not imported into the HSM token. Trustpoint accesses it only through the crypto backend service API, so PKI code uses the same managed-key interface for generated and protected imported keys.

Docker Integration

Setup Instructions

To set up SoftHSM with Docker, you need to create the required secret files in the root directory of the project:

  1. Create the database user file:

    echo "<DB_USER>" > db_user.txt

  2. Create the database password file:

    echo "<DB_PASSWORD>" > db_password.txt

  3. Create the HSM PIN file:

    echo "<HSM_PIN>" > hsm_pin.txt

  4. Create the HSM SO PIN file:

    echo "<HSM_SO_PIN>" > hsm_so_pin.txt

Set appropriate permissions on the secret files:

chmod 600 db_user.txt db_password.txt hsm_pin.txt hsm_so_pin.txt

To start the Trustpoint application with SoftHSM support, run the following command:

docker compose -f docker-compose.softhsm.yml up --build

This will build and start the containers for Trustpoint, PostgreSQL, and SoftHSM.

Container Configuration

The Trustpoint container includes pre-configured SoftHSM support with token directory and configuration file setup. HSM PINs are managed through Docker secrets for secure credential handling.

Docker Compose Secrets:

secrets:
  db_user:
    file: db_user.txt
  db_password:
    file: db_password.txt
  hsm_pin:
    file: hsm_pin.txt
  hsm_so_pin:
    file: hsm_so_pin.txt

environment:
  DATABASE_USER_FILE: /run/secrets/db_user
  DATABASE_PASSWORD_FILE: /run/secrets/db_password
  HSM_PIN_FILE: /run/secrets/hsm_pin
  HSM_SO_PIN_FILE: /run/secrets/hsm_so_pin
